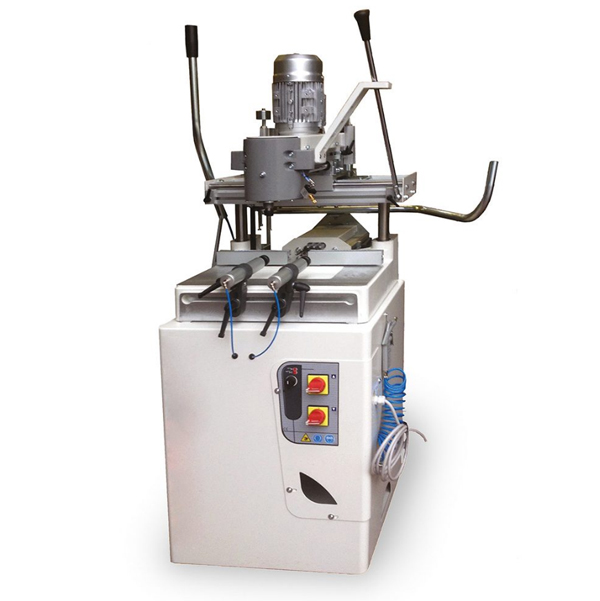

TECHNICAL DATA: Pantograph-perforating machine with 3 drills.For execute works in counterboring or in template and, for drillings aluminium profile. Triphase motor hp 1.5 (Kw 1.1) head motor / Triphase motor hp 0,75 (0,55 Kw) Drilling motor. Motor 2.800 rpm – speed tool 12.000 rpm. x axis stroke 300mm. - y axis stroke 150 mm. - z axis stroke 130 mm. Dimensions: 700x750x1600mm STANDARD EQUIPMENT: pneumatic clamps universal copy template collet Ø 8mm Lubrication Venturi Air gun and air filter OPTIONAL ACCESSORIES: Model with automatic advanced of 3 drills Battuta stop system with manual round handle Roller conveyors in-feed & out-feed virgin template collet Ø 10 emulsified cutting oil 20 lt. |
