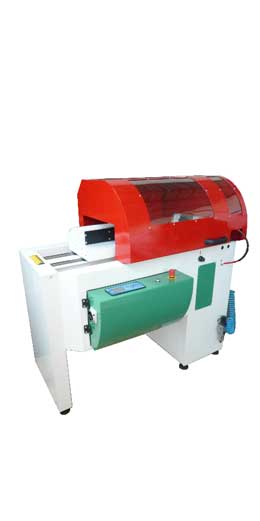

TECHNICAL DATA Single head automatic rising cutting machine for cuts at 90° with saw blade Ø450mm. Indicated for the work in series.Automatic progress of the blade, exit speed of blade adjustable with external regulator and possibility of regulation height of cut.1Management of cutting up to 620 mm without cutting piece and shooting fully automatic. Possibility 'shooting piece for cuts longer than 620mm. Feeder bar managed by the control. Entering cutting lists from control and keyboard of machine.Full protection of the head of cut with carter. Motor 3Hp. Axis movement on linear guides Dimensions: 1600x900x1350mm STANDARD EQUIPMENT: Pneumatic clamping set with vertical clamp on cart 2 different programs of work (manual for single pieces and automatic with number of pieces by operator) Lubrication Venturi Air gun and air filter OPTIONAL ACCESSORIES: motorized conveyor free roller conveyor Saw Blade Ø450mm emulsified cutting oil 20 lt. |
