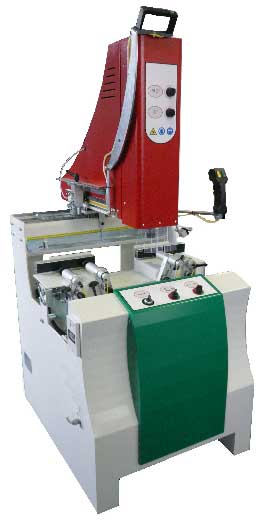

TECHNICAL DATA: Manual copy router with pneumatic clamps and lubrification, and pneumatic tracer points. Equipped with pneumatic turning table at two positions 0° and 90° with goniometer for adjusting intermediate degrees. Equipped with variable speed spindle adjusted by inverter and potentiometer (from 2800 to 12000rpm) with threephase motor 1,5HP. Working capacities 560x350x260mm. Movement of the axis on linear guides. Equipped with nr.2 tracer points and nr. 4 pneumatic clamps. Specially adressed for working on aluminium,pvc,steel. Dimensioni: 830x950x1800mm STANDARD EQUIPMENT: 4 pneumatic clamps 2 tracer points with 3 diameters: 5/8/10mm collet Ø 8 universal copy template Lubrication Venturi Air gun and air filter OPTIONAL ACCESSORIES: Roller conveyors in-feed & out-feed virgin template collet Ø 10 emulsified cutting oil 20 lt. |
